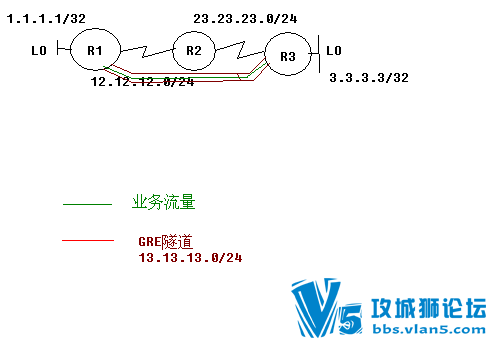

H3C_VPN 实验拓扑和配置命令(gre_over_jpsec ipsec ipsec_over_gre)

H3C_VPN 实验拓扑和配置命令(gre_over_jpsec ipsec ipsec_over_gre)

H3C_VPN 实验拓扑和配置命令(gre_over_jpsec ipsec ipsec_over_gre)

gre.rar
gre_over_jpsec.rar
ipsec.rar
ipsec_over_gre.rar

<RT1>display current-configuration
#
version 5.20, Alpha 1011
#
sysname RT1
#
password-control login-attempt 3 exceed lock-time 120
#
undo voice vlan mac-address 00e0-bb00-0000
#
ipsec cpu-backup enable
#
undo cryptoengine enable
#
domain default enable system
#
vlan 1
#
domain system
access-limit disable
state active
idle-cut disable
self-service-url disable
#
interface Ethernet0/1/0
port link-mode route
#
interface Serial0/2/0
link-protocol ppp
ip address 12.12.12.1 255.255.255.0
#
interface Serial0/2/1
link-protocol ppp
#
interface Serial0/2/2
link-protocol ppp
#
interface Serial0/2/3
link-protocol ppp
#
interface NULL0
#
interface LoopBack0
ip address 1.1.1.1 255.255.255.255
#
interface Ethernet0/4/0
port link-mode bridge
#
interface Ethernet0/4/1
port link-mode bridge
#
interface Ethernet0/4/2
port link-mode bridge
#
interface Ethernet0/4/3
port link-mode bridge
#
interface Ethernet0/4/4
port link-mode bridge
#
interface Ethernet0/4/5
port link-mode bridge
#
interface Ethernet0/4/6
port link-mode bridge
#
interface Ethernet0/4/7
port link-mode bridge
#
interface Tunnel1
ip address 13.13.13.1 255.255.255.252
source Serial0/2/0
destination 23.23.23.2
keepalive 10 3
gre key 123
#
ip route-static 0.0.0.0 0.0.0.0 Tunnel1
ip route-static 23.23.23.0 255.255.255.0 12.12.12.2
#
load xml-configuration
#
user-interface con 0
idle-timeout 0 0
user-interface vty 0 4
#
return
