各位知道，思科那个UCS刀框装全宽刀片的时候，中间那个挡板怎么拆吗?

各位知道，思科那个UCS刀框装全宽刀片的时候，中间那个挡板怎么拆吗?

Installing a Blade Server

Full-width Blade Servers are intended to run in the upper slots of the chassis, if the chassis will house both full-width and half-width servers. A chassis with four full width servers is fully supported.

Procedure

---

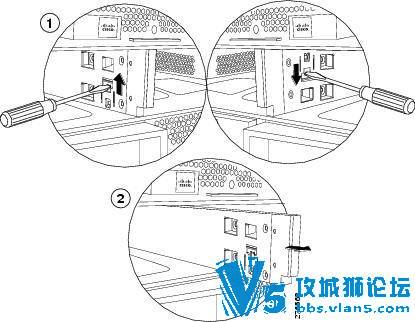

Step 1	If necessary, remove the slot divider (N20-CDIVV) from the chassis. Simultaneously pull up on the left side catch and push down on the right side catch as shown in callout 1 of the following figure. Pull the slot divider out of the chassis as shown in callout 2 of the following figure. Keep the slot divider in case it is needed at another time.Figure 5. Removing a Slot Divider / M4 i/ V2 O* l. I9 u8 @9 D $ C* A  p7 T8 g7 H" w# M Tip    To reinstall the slot divider, align it with the dimples in the slot top and bottom and slide it back in until it clicks into place. 2 K) E. k" ~, w+ d9 n

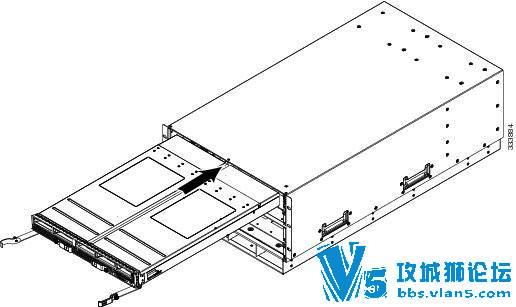

Step 2	Grasp the front of the blade server and place your other hand under the blade to support it.Figure 6. Positioning a Blade Server in the Chassis : O: o" `5 B* ~8 H) B8 p5 j" F5 d : p  o1 H0 X1 f5 L$ a- L4 H) B
Step 3	Open the ejector levers in the front of the blade server.
Step 4	Gently slide the blade into the opening until you cannot push it any farther.
Step 5	Press the ejector levers so that they catch the edge of the chassis and press the blade server all the way in.
Step 6	Tighten the captive screw on the front of the blade to no more than 3 in-lbs. Tightening with bare fingers only is unlikely to lead to stripped or damaged captive screws.

http://www.cisco.com/c/en/us/td/ ... s/B420M3.html#ID450
